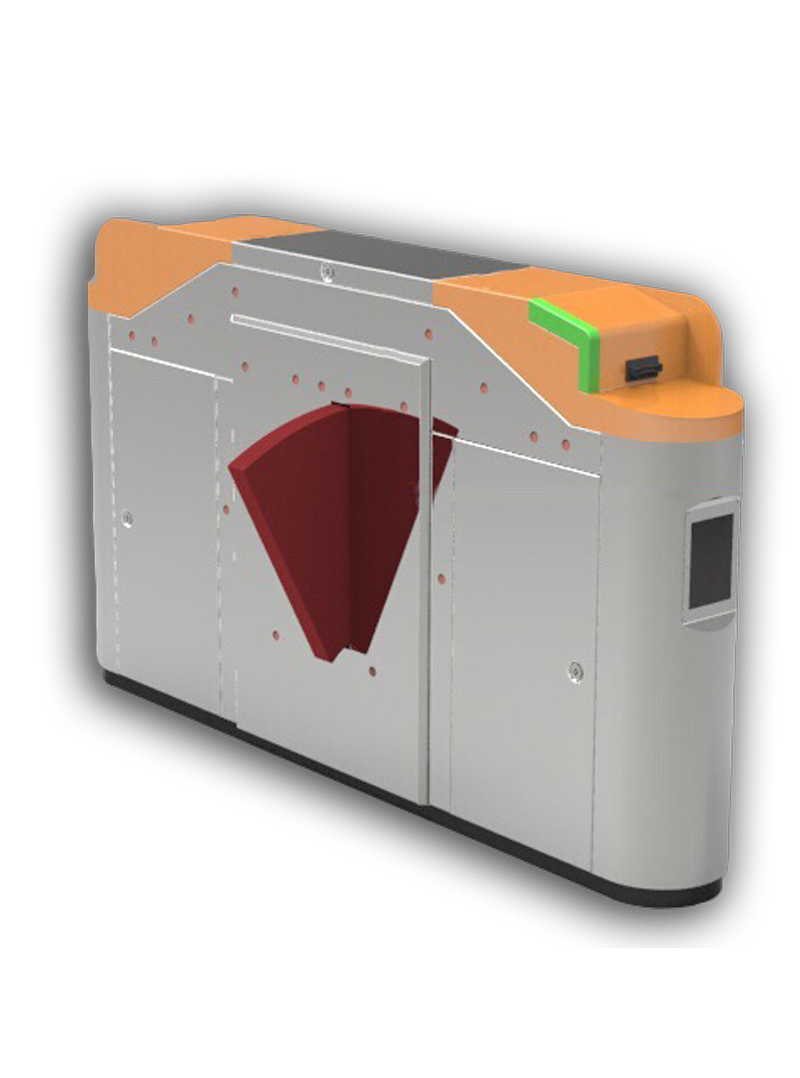

Flap Barrier with Card Insert (FB400)

Technical Parameter:

• Size: 1800mm(L)*280mm(W)*1040mm(H)
• Passage length: 500mm-550mm
• Material: 1.5 mm 304 stainless steel or various color of lacquer
• Motor: 24VDC 40W, Working Voltage: AC 220V±10% 50Hz, Temperature: －30℃ + 70℃
• Humidity: <90%
• Input interface: 12V TTL signal, or 12V pulse signal, width> 100 ms, Driven current>10 mA
• Communication interface: TCP/IP
• Passing speed: 30 person/minutes(Normally Close mode)- 50 person/minutes(Normally Open mode)
• Noise:<50 DB, Weight: < 70KG
• Working times without failure:2 million
• Material of wing: 18 mm of acrylic with LED(red of green) or 48MM PU soft material

Product Feature:

• 1.5mm 304 Stainless steel , self designed, good appearance, toughened glass in reader window to prevent hurt, LCD on top(option) to display user information.
• 8 pairs of infrared sensors to prevent hurt when with baggage or children, can add more for more accurately control and judgment.
• Infrared sensors and firmware to prevent tagging after and alarm
• High light huge LED on top and besides shows the direction and its status, Red to show prohibiting passing and Green to show allowing passing
• NO(Normally Open)/NC(Normally Closed) mode optional to relax the following speed
• Can adjust open/close speed of wing according to the following speed
• Self reset function. When user doesn't passing in sett time, the system will automatically cancel this passing, the time can be set in software
• Supply many Standard interface like RJ45 /RS485/232 to connect to EM ID, Mi-fare 1 IC, CPU CARD,TI, Magnetic, Barcode, fingerprint, hand, face readers, card insert/swallow machine, LED/LCD display, strong compatibility, easy to system integration.
• Using ARM as CUP chip, stable running, better performance, and more interface to connect input and output signal, Using TCP/IP Protocol, real-time data uploading or manually data upload, easy to data analysis, no data losing when big data or data cash
• Reading card with memory or without memory optional.
• Self Examine and alarm hint, easy for user to use and maintain.
• Can set passing mode by software: one way passing after authorization, both way passing after authorization, both way passing without authorization.

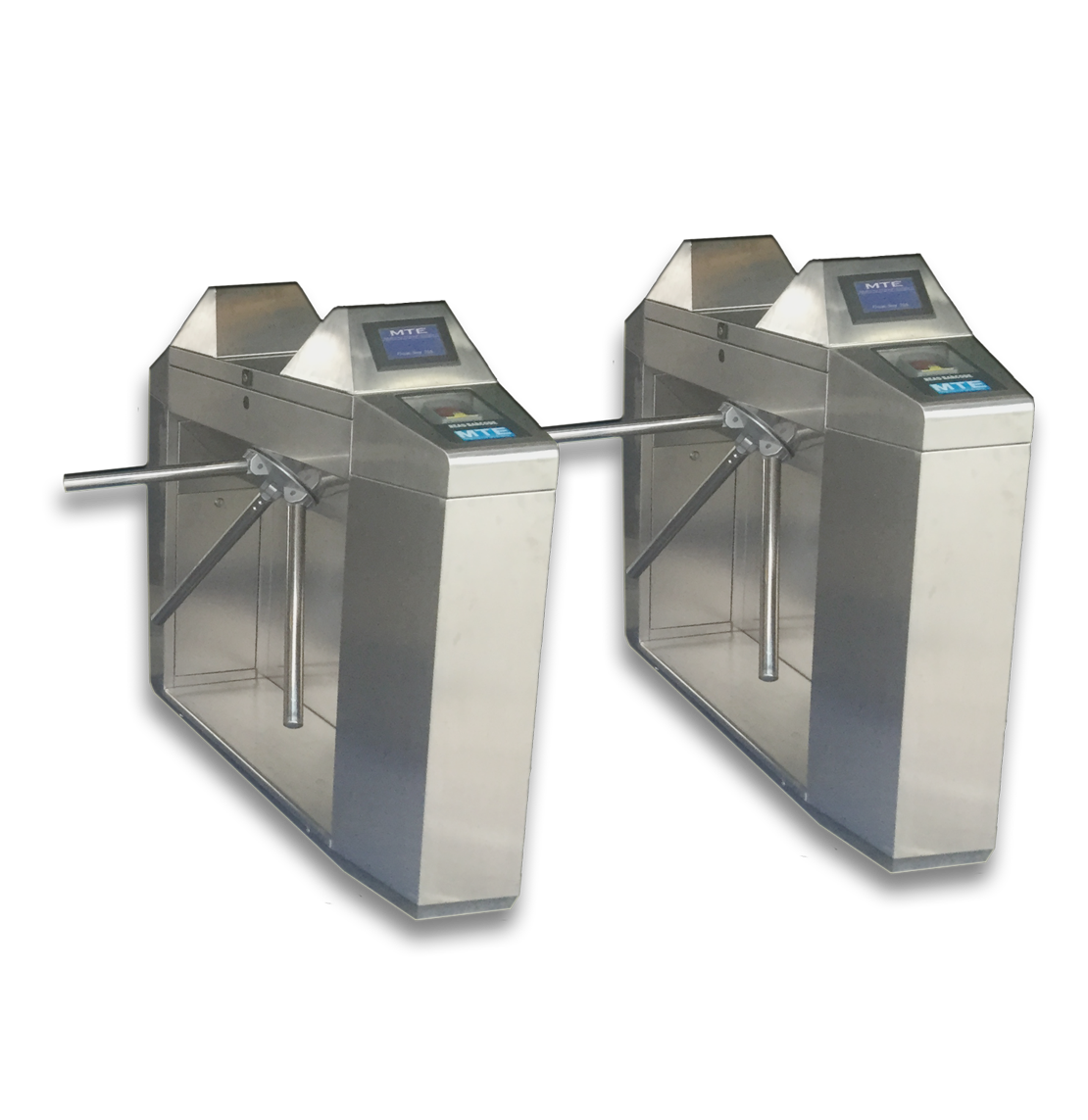

Tripod Turnstile

Technical Parameter:

• Size: 1200mm(L) * 280mm(W) *960mm(H)
• Arm Length: 500mm<600mm<600mm
• Power:AC220V input, driven by DC24V（1500mA）safe current
• Working Temperature: -20℃ + 60℃；
• Working Humidity: <90%
• Input interface: 12V TTL signal, or 12V pulse signal, width> 100 ms, Driven current>10 mA
• Passing Speed: 30-40 person/minute
• Communication: TCP/IP.
• LED high light of direction indication
• Reader Interface: Barcode
• Working times without failure:4 million
• Weight: < 70KG

Product Feature:

• Special Drive system, make turnstile lock very stable and exactly.
• System runs with little noise, no mechanical strike.
• Can set passing mode by software: one way passing after authorization, both way passing after authorization, both way passing without authorization.
• Lock and alarm when forcing to lock, when illegal interloper push arm in 5˚, the arm will be locked, meantime sound alarm, it will be released when getting valid open signal.
• Supply many Standard interface like RJ45 /RS485/232 to connect to Mifare 1 IC, Magnetic, Barcode, fingerprint, etc easy to system integration.
• Reading card with memory or without memory optional.
• Using TCP/IP Protocol, real time data uploading or manually data upload, easy to data analysis, no data losing when big data or data cash.
• Arm drop when suddenly power off, and supply cascading interface input interface like fire alarm, when sending signal in fire alarm, the arm drop, in case to some emergency situation.
• Self Examine and alarm hint, easy for user to use and maintain.
• High light LED of direction indication, Red to show prohibiting passing and Green to show allowing passing.
• Self reset function. When user doesn’t passing in sett time, the system will automatically cancel this passing, the time can be set in software.
• High light LED advertisement on Side body can be installed(optional)

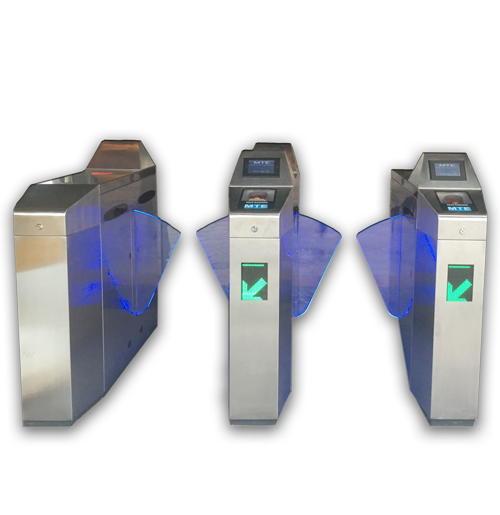

Flap Barrier (FB300)

Technical Parameter:

• Size: 1400mm(L)*280mm(W)*960mm(H)
• Passage length: 500mm-600mm
• Material: 1.5 mm 304 stainless steel or various color of lacquer
• Motor: 24VDC 40W
• Working Voltage: AC 220V±10% 50Hz
• Working temperature. -30℃ + 70℃
• Humidity: <90%
• Input interface: 12V TTL signal, or 12V pulse signal, width> 100 ms, Driven current>10 mA
• Communication interface: TCP/IP.
• Passing speed: 30 person / minutes (Normally Close mode) - 50 person / minutes (Normally Open mode)
• Working times without failure:2 million
• Weight: < 70KG

Product Feature:

• 1.5mm 304 Stainless steel or A3 lacquer as shell material, self designed, good appearance, toughened glass in reader window to prevent hurt, LED lighting on side body optional for users to put on their own advertisement
• 4 groups top and 2 groups below of infrared sensors to prevent hurt when with baggage or children
• Infrared sensors and firmware to prevent tagging after and alarm
• High light huge LED on top and besides shows the direction and its status, Red to show prohibiting passing and Green to show allowing passing
• NO (Normally Open) / NC (Normally Closed) mode optional to relax the following speed
• Can adjust open / close speed of wing according to the following speed
• Self reset function. When user doesn't passing in sett time, the system will automatically cancel this passing, the time can be set in software
• Supply many Standard interface like RJ45 /RS485/232 to connect to Mifare 1 IC, Magnetic, Barcode, fingerprint etc easy to system integration.
• Using TCP/IP Protocol, real time data uploading or manually data upload, easy to data analysis, no data losing when big data or data cash
• Reading card with memory or without memory optional.
• Self Examine and alarm hint, easy for user to use and maintain.
• Can set passing mode by software: one way passing after authorization, both way passing after authorization, both way passing without authorization

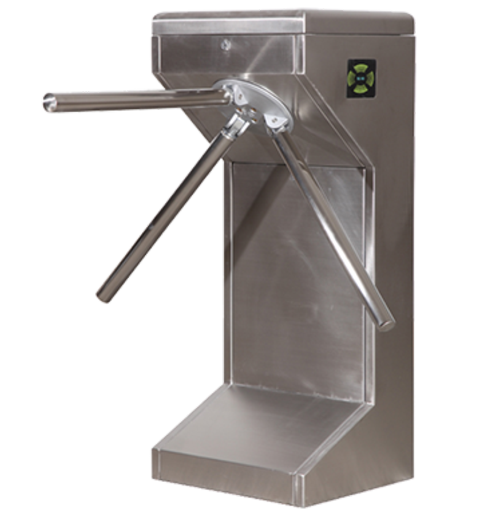

Tripod Turnstile (TT200)

Technical Parameter:

• Size: 480mm(L)*350mm(W)*960mm(H).
• Arm Length: 500mm
• Power: AC220V input, driven by DC24V (1500mA) safe current.
• Working Temperature:-20℃ to +60℃.
• Working Humidity: <90%
• Input interface: 12V TTL signal, or 12V pulse signal, width> 100 ms, Driven current>10 mA
• Passing Speed: 30-40 person/minute
• Communication: TCP/IP, RS485/232 optional, distance in RS485< 1200M
• LED high light of direction indication
• Reader interface: RS 485/232, support many mode, Barcode, RFID, Magnetic, Mifare one IC, etc.
• Noise:<50 DB
• Working times without failure:4 million
• Weight: < 70KG

Product Feature:

• Special Drive system, make turnstile lock very stable and exactly
• System runs with little noise, no mechanical strike
• Can set passing mode by software: one way passing after authorization, both way passing after authorization, both way passing without authorization.
• Lock and alarm when forcing to lock, when illegal interloper push arm in 5˚, the arm will be locked, meantime sound alarm, it will be released when getting valid open signal.
• Supply many Standard interface like RJ45 /RS485/232 to connect to EM ID, Mifare 1 IC, TI, Magnetic, Barcode, fingerprint, hand, face readers, strong compatibility, easy to system integration
• Reading card with memory or without memory optional.
• Using TCP/IP Protocol, realtime data uploading or manually data upload, easy to data analysis, no data losing when big data or data cash
• Arm drop when suddenly power off, and supply cascading interface input interface like fire alarm, when sending signal in fire alarm, the arm drop, in case to some emergency situation.
• Self Examine and alarm hint, easy for user to use and maintain.
• High light LED of direction indication, Red to show prohibiting passing and Green to show allowing passing.
• Waterproof and ventilative structure to make mechanism and electrical parts safe and using life, in order to apply in any using condition.
• Self reset function. When user doesn’t passing in sett time, the system will automatically cancel this passing, the time can be set in software
• High light LED advertisement on Side body can be installed(optional)
