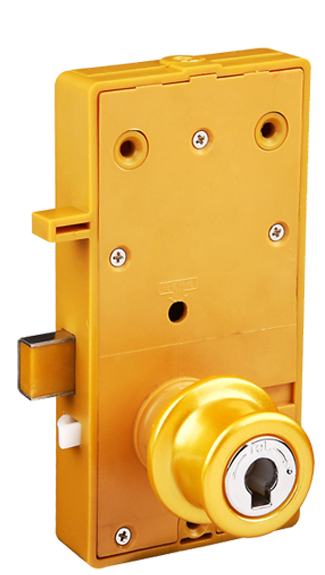

Insert mode I-Button Cabinet Lock

Applications

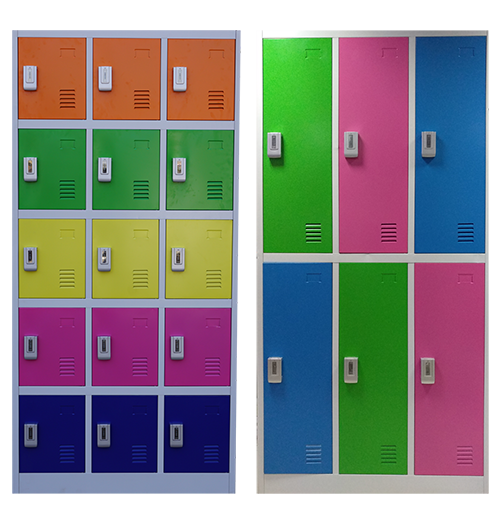

For water park, amusement parks and so on where use-friendly require Locker room functions.

Features

  • Beautiful and convenient design of knob.
  • ABeautiful shape, various color.
  • HAnti-prize keyhole design, safe and practical.
  • "Can not pull out key without lock" mode.
  • Battery low alarm mode.
  • Main board are stable and of high quality with industrial class chip.
  • The key is made by enclosure the IB chip into plastic, anti-shock, water proof, anti-cauterization, there is hole on both side, easy for carry.

Specifications

  • Size: external 30(H) x 40(D)mm
  • Internal 63(W) x 130(H) x 22(D)mm
  • Power source 4.5V(1.5V * 3ea)
  • Material: external ABS
  • Internal: Zinc die-casting and ABS
  • Door thickness: 15~20mm (Thicker than this is possible by special requirement)

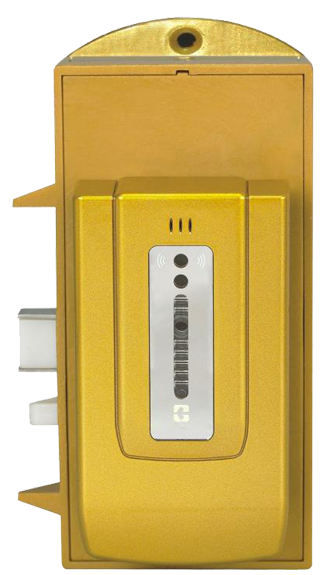

RF Locker Lock

Applications

For water park, amusement parks and so on where use-friendly require Locker room functions.

Detailed profile

  • Touch to unlock by TM card.
  • Automatic close the door and touch to close the door mode are selectable.
  • Hide external power supply jack, used in emergency situation to unlock the lock.
  • Anti prize keyhole design.
  • Anti prize alarm function.
  • Battery Low alarm mode.
  • Main board are stable and of high quality depend on the industrial class chip.

Description

  • Three class management mode, without software control.
  • Master card (EM) issue and management Manager Card, Manager Card issue and management User Card( User Card/Service Card ).
  • There is one Master Card, one Manager Card and one User Card( 12 Service Card if need ) for one lock.
  • Issue card, withdraw card and delete card by the lock itself, without PC communication and card reader support.

Specifications

  • Size: external 51(W) x 93(H) x 22(D)mm
  • Internal 63(W) x 130(H) x 22(D)mm
  • Power source 4.5V(1.5V * 3ea)
  • Material: external ABS
  • Internal: Zinc die-casting and ABS
  • Door thickness: 15~30mm (Thicker than this is possible by special requirement)

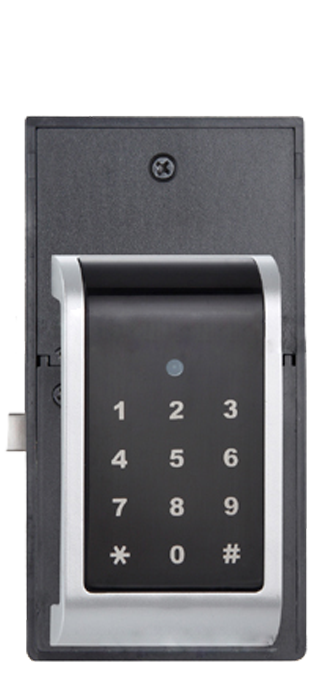

Touch Screen Digital Locker Lock

Applications

For water park, amusement parks and so on where use-friendly require Locker room functions.

Features

  • 1. Digital locker lock by touch screen.
  • 2. Can setup one time code or permanent code.
  • 3. Owner key and master key is RFID mode.
  • 4. Keep Owner key and master key for avoid password (code), more security then simplex digital locker lock.
  • 5. Have the function for fixed time automatic unlocking setting.
  • 6. Battery low alarm mode.

Description

  • 9008: Touch screen digital locker lock, cabinet lock.
  • Owner Key (card frequency 125KHZ): Set up it before daily use. One lock is only one owner key. This key is for setup and delete master key. Owner key lock or unlock the lock.
  • Master Key (card frequency 125KHZ): Setup it after setup owner key and before daily use.
  • One lock can have 1~3pcs master key. Master key can be use for unlock the lock (open the door), but is can locked the lock (close the door). After use the master key on the lock, the lock is on passage status. It means, before setup new code, the lock is always unlocked.
  • Can change the one time code or permanent code by press the ” * “ key and scan owner key.
  • Have function for fixed time automatic unlocking setting by press the ” * “ key and scan master key.

Specification

  • 1. Unlock mode: Automatic locking mode
  • 2. Emergency Unlocking: Use the 9 Volt Batteries on the bottom of the lock can unlock the lock when power low.

Parameter

  • Power: DC3.6~4.8, ( 3pcs alkaline battery )
  • Battery low alarm, when CPU working voltage is DC4.3±0.2/ DC3.8±0.2 it make alarm, and the red light green light flash.
  • Static Current: 10 uA
  • Dynamic Current: <300mA
  • Battery Life: 15000 times unlock in normal instance, 150 times after battery low alarm.
  • Working Temperature: -20℃ to +85℃
  • Working Humidity: 15~95%RH
  • Storage Temperature: -40~+85℃.
  • Storage Humidity: 10~98%RH.
  • Motor Drive: 400Ms
  • Internal: Zinc die-casting and ABS
  • Front Panel Size: L90*W52*H15mm
  • Internal Lock body: L129*W65*H25mm
  • Door thickness: 15~30mm.

Packing

  • Carton size: 47X40.5X16.5cm ( for lock)
  • G.W.: 8.6KGS
  • N.W.: 7.3KGS
  • Unit Weight: 0.25KG
  • Qty/Ctn: 40 Set
